11kV/1kV Skid Mounted Substation
11kV/1kV Skid Mounted Substation

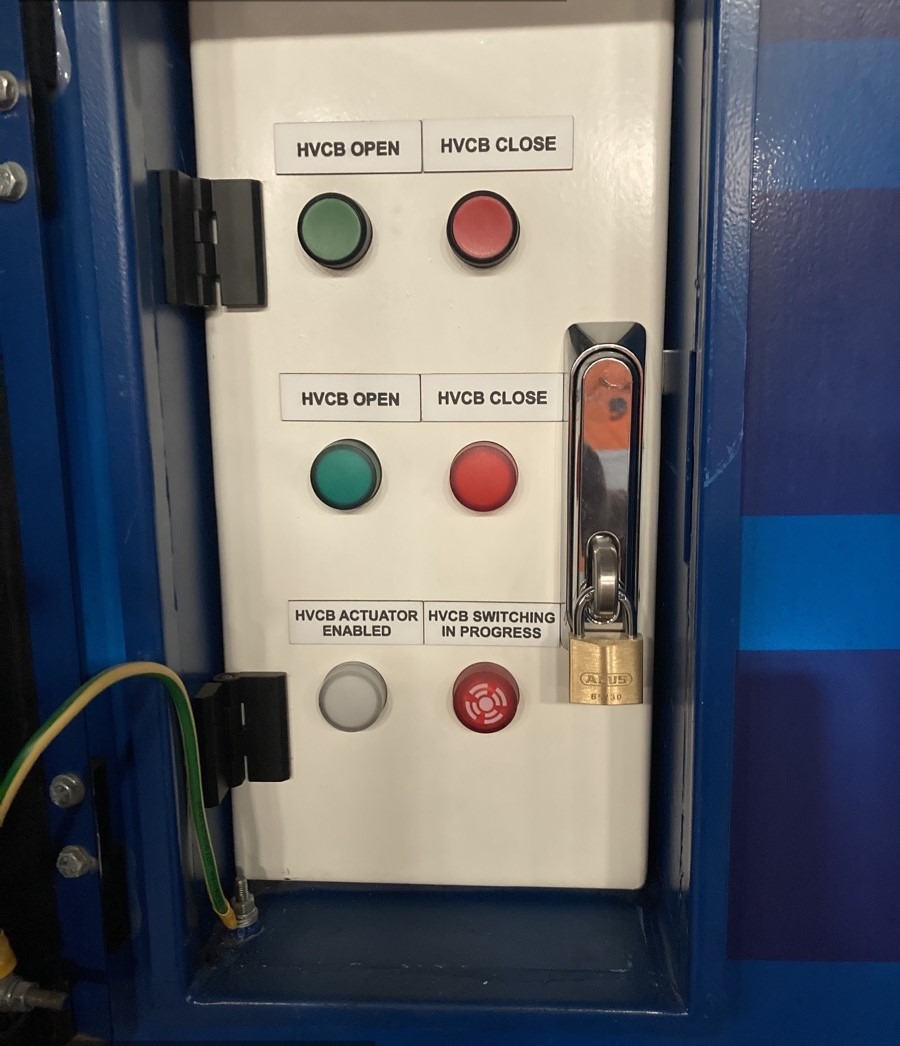

High Voltage Switch RMU:
- Lucy VRN6A 12kV IBI RMU

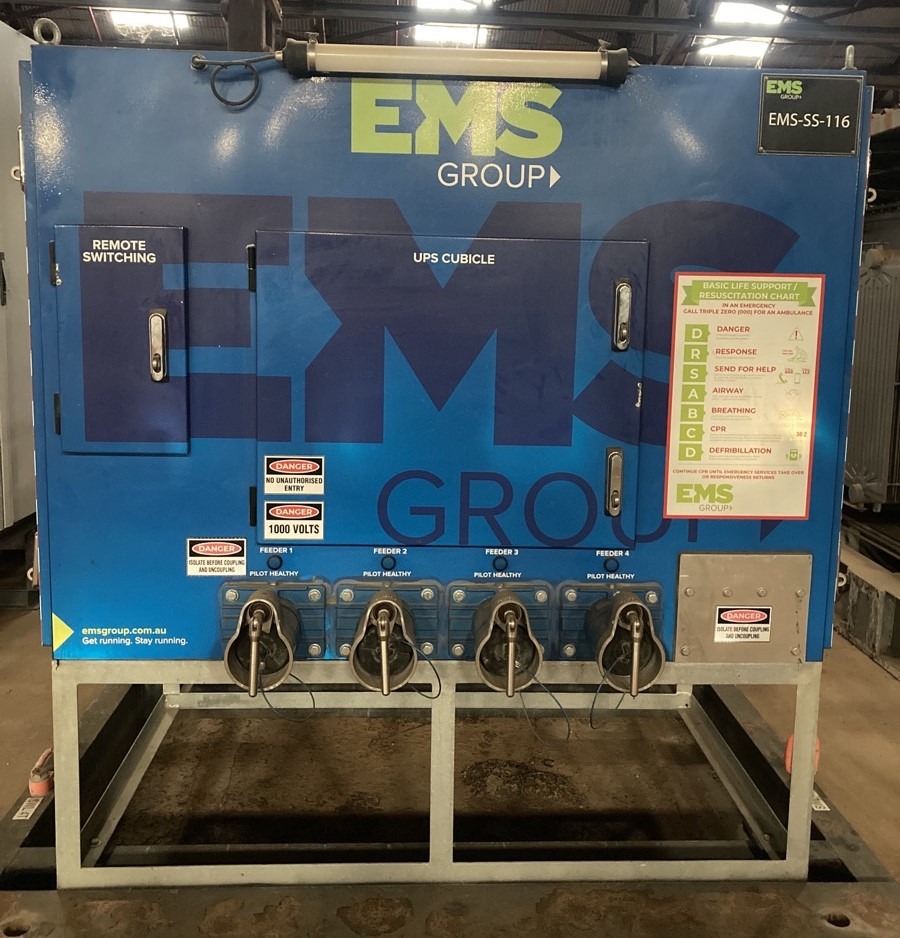

- Panel Remote Switching
- Woodward WIP1 Protection Relay
- New Macey 11kV/800A Adaptor

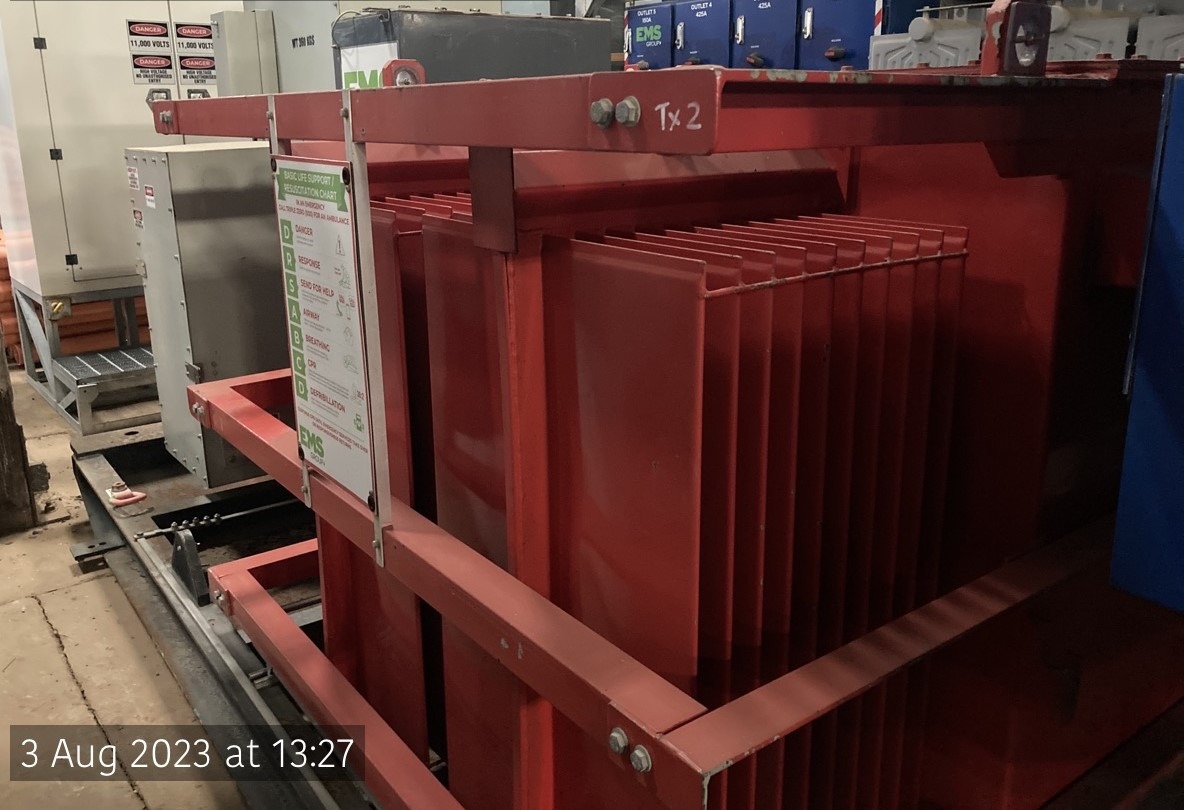

High Voltage Transformer
- Schneider 1500kVA 11000V/1050V
- DYN11
- Impedance 3.56%
- ONAN Cooling
- Mineral Oil
- 5 Tap Positions
- HV Current: 78.7A
- LV Current: 825A
- Weight: 5350kgs

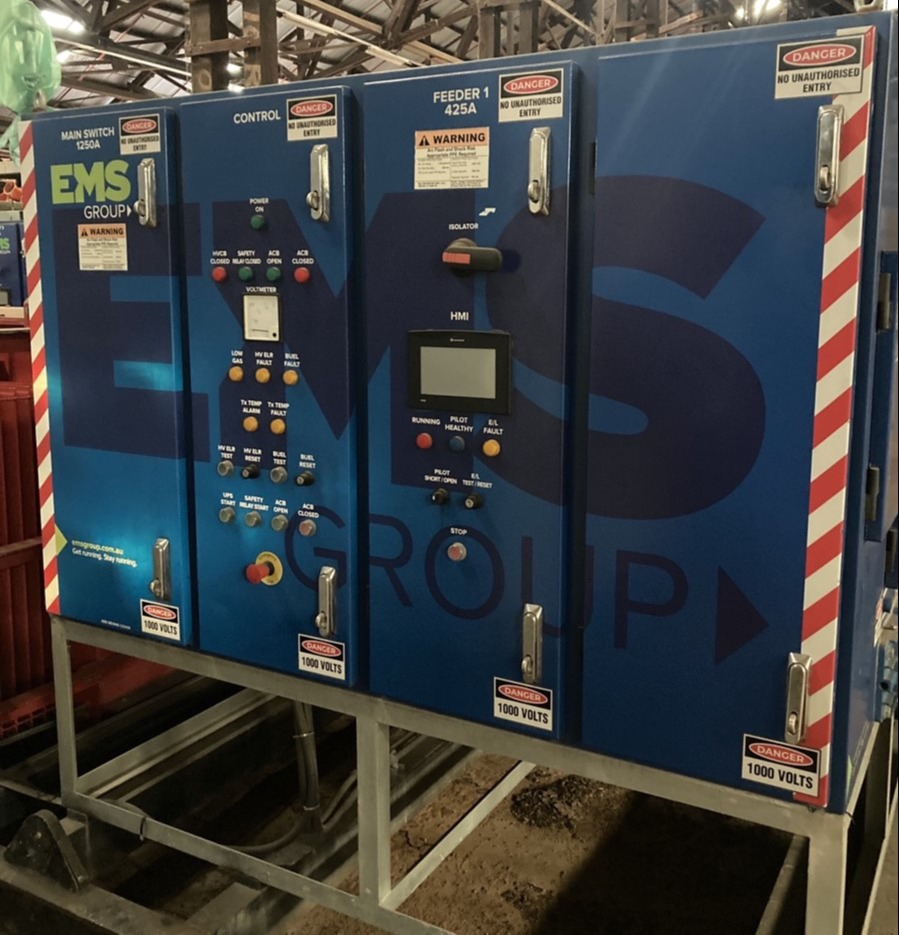

Low Voltage Switch Board
- MCB: ABB LSI 1250A 3 Pole with Sundrive ELR3C Earth Leakage
- CB 1: ABB 630A T5V LSI 3 Pole with Probeck IPS Earth Leakage, Earth Fault Lockout, Insulation Resistance, Phase Rotation, Amp Control MEC-1 Pilot Relay. 425A New Macey Receptacle
- CB2: ABB 630A T5V LSI 3 Pole with Probeck IPS Earth Leakage, Earth Fault Lockout, Insulation Resistance, Phase Rotation, Amp Control MEC-1 Pilot Relay. 425A New Macey Receptacle
- CB3: ABB 630A T5V LSI 3 Pole with Probeck IPS Earth Leakage, Earth Fault Lockout, Insulation Resistance, Phase Rotation, Amp Control MEC-1 Pilot Relay. 425A New Macey Receptacle
- CB4: ABB 630A T5V LSI 3 Pole with Probeck IPS Earth Leakage, Earth Fault Lockout, Insulation Resistance, Phase Rotation, Amp Control MEC-1 Pilot Relay. 425A New Macey Receptacle
- Weidmuller UPS
JLE has fully equipped workshops capable of performing any modification works required.
Available for Sale
Group: 2974
Asset ID: JLE-SKS-116
Rating: 2500kVA
Condition: Used
