WHT Precast Facility

Overview

The HV electrical substations project for the Western Harbour Tunnel at Emu Plains involved the manufacture and supply of electrical infrastructure required for the precast yard. The scope of work included the design, manufacture, and supply of a 1.5MVA 11kV/400V containerized substation, along with multi-step 150kVAR power factor correction equipment. In addition to the substations, the project included the supply of high-voltage (HV) cables, metering units, load banks, fuel tanks, and other related components to ensure smooth and reliable power distribution.

Objectives

• Manufacture and supply a 1.5MVA 11kV/400V containerized substation to meet power requirements.
• Implement multi-step 150kVAR Power Factor Correction to optimize power quality at the precast yard.
• Ensure the supply of all necessary components for HV infrastructure, including cables, metering units, load banks, and fuel tanks.
• Deliver the project within the agreed timeline and budget, ensuring operational efficiency.

Scope of works

• Manufacture and supply of a 1.5MVA 11kV/400V containerized substation to meet the power needs for the client's precast yard.
• Installation of multi-step 150kVAR Power Factor Correction equipment to enhance power quality and efficiency.
• Supply and installation of HV cables, metering units, load banks, and fuel tanks to ensure proper power distribution and backup.
• Full commissioning and testing of the supplied systems to ensure optimal performance and safety.

Supplied Items

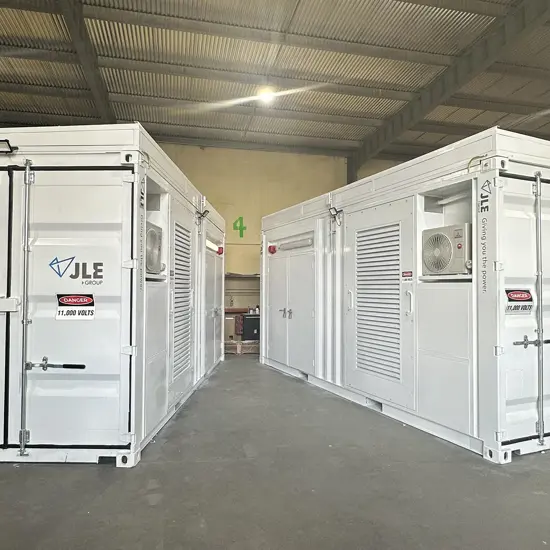

• 1.5MVA 11kV/400V Containerized Substation: Designed to provide stable and reliable power for the precast yard operations.
• Multi-step 150kVAR Power Factor Correction: Installed to improve power factor and optimize energy use.
• HV Cables: To ensure safe and efficient transmission of high-voltage electricity.
• Metering Units: For accurate monitoring and management of electrical usage.
• Load Banks: For testing and ensuring the reliability of electrical systems.
• Fuel Tanks: For backup power solutions to ensure uninterrupted power supply during emergencies.

Key Deliverables

• 1.5MVA 11kV/400V Containerized Substation: Delivered and installed at the precast yard, providing the required high-voltage power for the operations.
• Multi-step 150kVAR Power Factor Correction: Installed to optimize the electrical system’s efficiency and reduce energy losses.
• HV Cables: Supplied to connect all relevant components for power distribution.
• Metering Units: Installed to allow for effective monitoring and management of power use.
• Load Banks and Fuel Tanks: Provided for system testing and backup power capabilities, ensuring operational reliability.

Outcome

The HV electrical substations project at Emu Plains for the Western Harbour Tunnel is on track for completion in early 2025. The project successfully meets the power needs of the precast yard, with the delivery of a containerised substation, power factor correction, and all essential components for efficient electrical distribution. With the systems fully tested and optimized for performance, the project ensures operational reliability and safety, supporting the overall progress of the Western Harbour Tunnel development.
